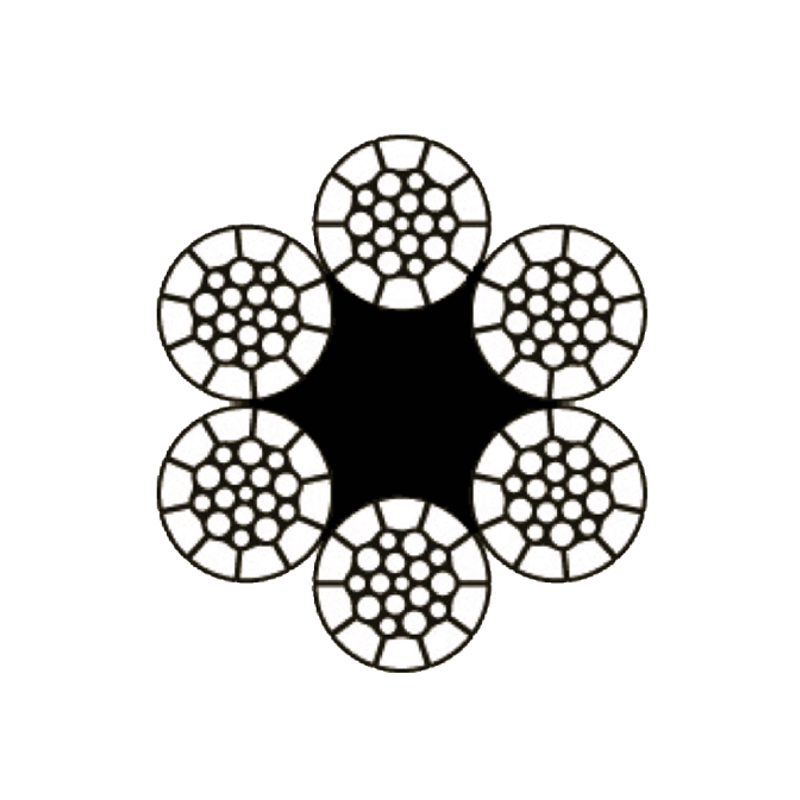

Oliveira wire - Euralpact 6x26 WS
Wire EURAL Coated compacted steel wire rope.DUAL TENSILE (1570/1770 N/mm2)
Trawl wire ropes made of high quality steel with special zinc and alumiminium coating toprotect from corosion.
The wire roes are processed and constructed with the latest technology, combining strength, fatique, resistance and protection from corosion characteristics in an excellent way.
FIBER CORE
Diameter mm |
weight kg/100 m |
MBF kN |
|
|
|
|
| 20 | 161 | 248 |
| 22 | 192 | 297 |
| 24 | 229 | 354 |
| 26 | 269 | 416 |
| 28 | 318 | 491 |
| 30 | 362 | 558 |
| 32 | 412 | 636 |
STEEL CORE
Diameter mm |
weight kg/100 m |
MBF kN |
|
|
|
|
| 20 | 179 | 282 |
| 22 | 215 | 339 |
| 24 | 257 | 405 |
| 26 | 300 | 473 |
| 28 | 355 | 558 |
| 30 | 402 | 633 |
| 32 | 459 | 723 |
| 34 | 519 | 818 |
| 36 | 580 | 913 |
| 38 | 644 | 1014 |
| 40 | 719 | 1131 |
| 42 | 790 | 1242 |
| 44 | 869 | 1367 |
