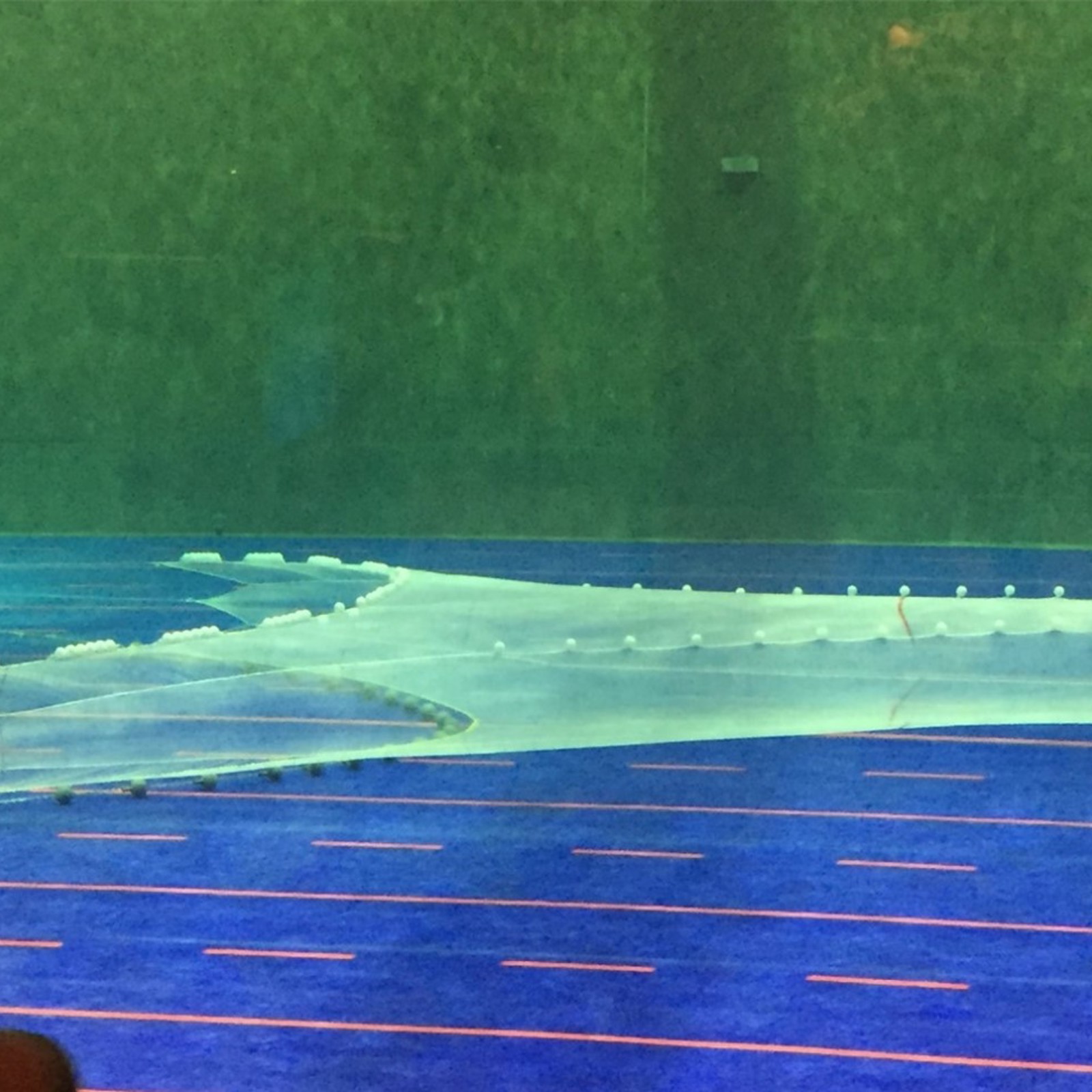

Bering Sea 400
Trawl TORMO TrawlSWEEPLINE
BRIDLES
BUOYANCY
GEAR
27 m
30 m
100 pcs. 8" 20x8" on each upper rib line
1321-inch rockhopper
3 bridle design for increased bottom contact, on smooth or semi-smooth bottom. Designed for sole and cod.
Can be with integrated selectivity panel, to reduce unwanted bycatch. Constructed with all straight panels, baited
5/4 together for very easy maintenance on same principle as pelagic high flow trawls. Really great waterflow.
Features:
- Great waterflow.
- Three-bridle design combined with continuous hang-mashes for good bottom contact.
- Heavy riblines of pre-stretched PP/PE or HMPE to support large catches.
- Short lower wings for low maintenance
- Constructed with compacted polyethylene web.
|
Test
|
1 |
||
|
Towing Speed |
knots |
3,2 |
|
|
Distance between doors |
Fth |
31,7 |
|
|
Spread |
Headline |
Fth |
9,4 |
|
|
Footrope |
Fth |
|
|
Height |
Wingend |
Fth |
2,0 |
|
|
Centre |
Fth |
2,75 |
|
Tension per side |
|
tons |
4,80 |
|
Test |
Notes |
Test |
Notes |
|
1 |
Original rig |
|
|
