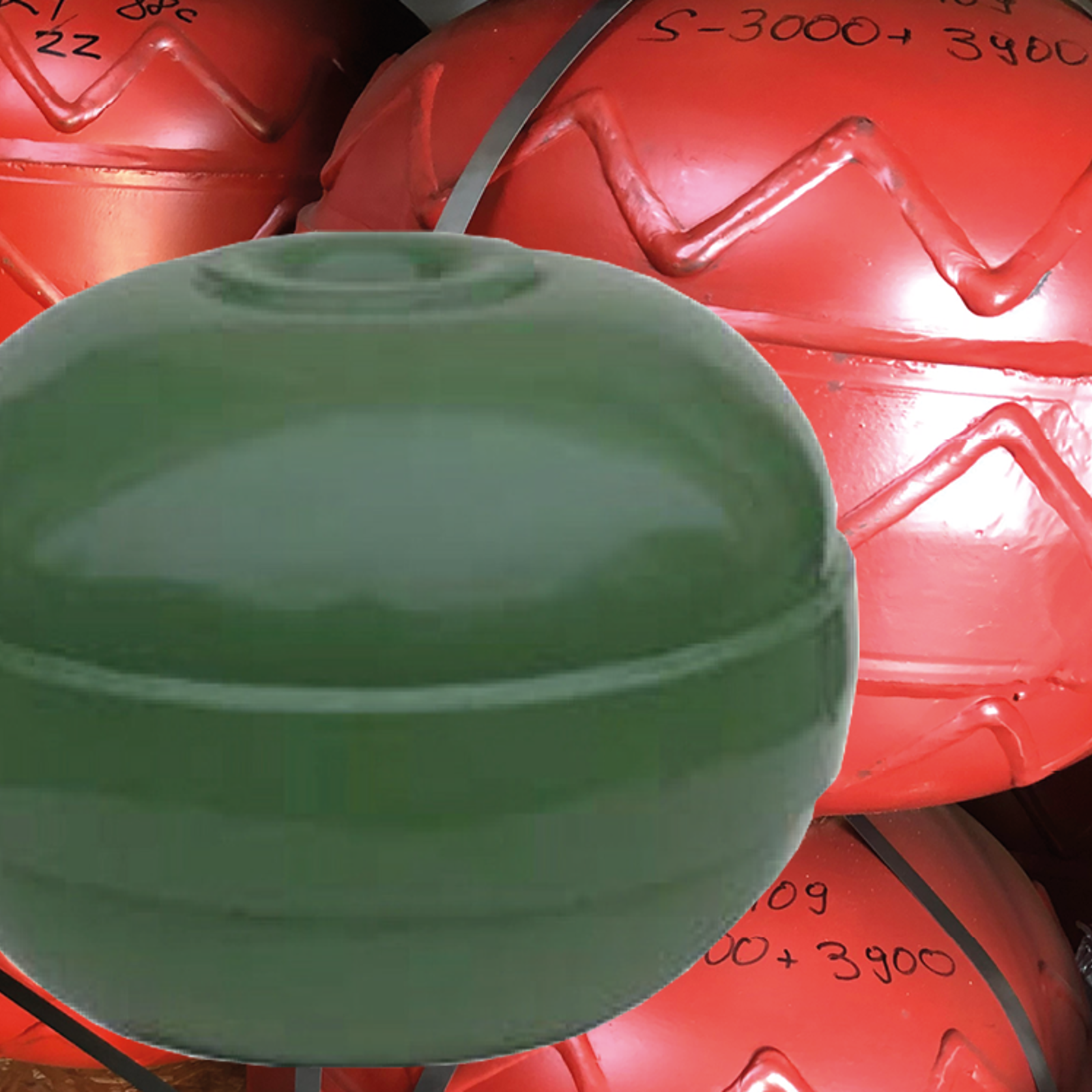

Bobbins in steel
Steel Bobbins Available in various sizes and designs.|
Item no. |
Diameter in inch |
Center |
Plate in mm. |
Weight in kg |
|
S3000 |
24'' |
88 |
15 |
154 |
|
S3000-125 |
24'' |
125 |
15 |
160 |
|
S3000-160 |
24'' |
160 |
15 |
164 |
|
S3000-200 |
24'' |
200 |
15 |
170 |
|
S3010 |
21'' |
88 |
15 |
132 |
|
S3000-125 |
21'' |
125 |
15 |
138 |
|
S3010-160 |
21'' |
160 |
15 |
142 |
|
S3010-200 |
21'' |
200 |
15 |
151 |
|
ZZ |
Zig-zag hard surface welds |
5-6 |
||
*) Top Eye diameter.
|
Reference |
Dimensions |
Materials |
Approach weights |
|||||
|
A |
C |
B |
||||||
|
Inches |
mm. |
mm. |
mm. |
Plate mm. |
Bend mm. |
On Deck kg |
On water kg |
|
|
ES10012 |
10 |
254 |
217 |
51 |
6 |
50x6 |
12 |
4 |
|
ES10012E |
10 |
254 |
207 |
76 |
6 |
50x6 |
12 |
4 |
|
ES12019 |
12 |
305 |
247 |
76 |
6 |
60x8 |
19 |
6 |
|
ES12019E |
12 |
305 |
244 |
90 |
6 |
60x8 |
19 |
8 |
|
ES12022 |
12 |
305 |
251 |
76 |
8 |
60x8 |
22 |
10 |
|
ES12022E |
12 |
305 |
248 |
90 |
8 |
60x8 |
23 |
11 |
|
ES14031 |
14 |
357 |
294 |
76 |
8 |
80x10 |
31 |
11 |
|
ES14031E |
14 |
357 |
290 |
90 |
8 |
80x10 |
33 |
12 |
|
ES14034 |
14 |
357 |
294 |
76 |
8 |
100x10 |
34 |
13 |
|
ES14038E |
14 |
357 |
298 |
90 |
10 |
80x10 |
38 |
18 |
|
ES16039 |
16 |
406 |
350 |
76 |
8 |
80x10 |
39 |
7 |
|
ES16039E |
16 |
406 |
347 |
90 |
8 |
80x10 |
40 |
9 |
|
ES16042 |
16 |
406 |
350 |
76 |
8 |
100x10 |
40 |
9 |
|
ES18062 |
18 |
457 |
364 |
90 |
10 |
100x10 |
62 |
19 |
|
ES18072E |
18 |
547 |
368 |
90 |
12 |
80x10 |
70 |
25 |
|
ES18072EB |
18 |
457 |
362 |
127 |
12 |
80x10 |
70 |
25 |
|
ES18072EA |
18 |
457 |
358 |
140 |
12 |
80x10 |
72 |
27 |
|
ES18077 |
18 |
457 |
368 |
90 |
12 |
120x12 |
77 |
32 |
|
ES18077EB |
18 |
457 |
362 |
127 |
12 |
120x12 |
78 |
32 |
|
ES18100SP |
18 |
457 |
372 |
90 |
15 |
120x16 |
97 |
52 |
|
ES21084 |
21 |
533 |
438 |
90 |
10 |
100x10 |
84 |
13 |
|
ES21084EAE |
21 |
533 |
410 |
127 |
10 |
100x10 |
86 |
13 |
|
ES21084EAL |
21 |
533 |
406 |
156 |
10 |
100x10 |
88 |
15 |
|
ES21084EAM |
21 |
533 |
400 |
203 |
10 |
100x10 |
91 |
18 |
|
ES21092 |
21 |
533 |
442 |
90 |
12 |
80x10 |
96 |
23 |
|
ES21092EB |
21 |
533 |
414 |
127 |
12 |
80x10 |
97 |
24 |
|
ES21102 |
21 |
533 |
442 |
90 |
12 |
120x12 |
104 |
32 |
|
ES21102EB |
21 |
533 |
414 |
127 |
12 |
120x12 |
106 |
36 |
|
ES21102ED |
21 |
533 |
410 |
156 |
12 |
120x12 |
107 |
34 |
|
ES21117 |
21 |
533 |
442 |
90 |
12 |
150x16 |
117 |
45 |
|
ES21117ED |
21 |
533 |
410 |
156 |
12 |
150x16 |
120 |
47 |
|
ES21117EF |
21 |
533 |
404 |
203 |
12 |
150x16 |
125 |
52 |
|
ES21136 |
21 |
533 |
446 |
90 |
15 |
150x16 |
132 |
56 |
|
ES21136EB |
21 |
533 |
416 |
127 |
15 |
150x16 |
128 |
63 |
|
ES21136ED |
21 |
533 |
414 |
156 |
15 |
150x16 |
127 |
63 |
|
ES24106E |
24 |
610 |
466 |
90 |
12 |
100x10 |
116 |
19 |
|
ES24106EB |
24 |
610 |
448 |
127 |
12 |
100x10 |
117 |
20 |
|
ES24406ED |
24 |
610 |
453 |
156 |
12 |
100x10 |
119 |
22 |
|
ES24116 |
24 |
610 |
466 |
90 |
12 |
120x12 |
123 |
27 |
|
ES24116EB |
24 |
610 |
448 |
127 |
12 |
120x12 |
116 |
16 |
|
ES24130 |
24 |
610 |
466 |
90 |
12 |
150x16 |
137 |
40 |
|
ES24153 |
24 |
610 |
466 |
90 |
15 |
150x16 |
156 |
57 |
|
ES24153ED |
24 |
610 |
457 |
156 |
15 |
150x16 |
162 |
64 |
These steel bobbins are made from highest grade of steel in Europe to maximize their working life.
They are used by several trawlers in different seabeds all around the world.
