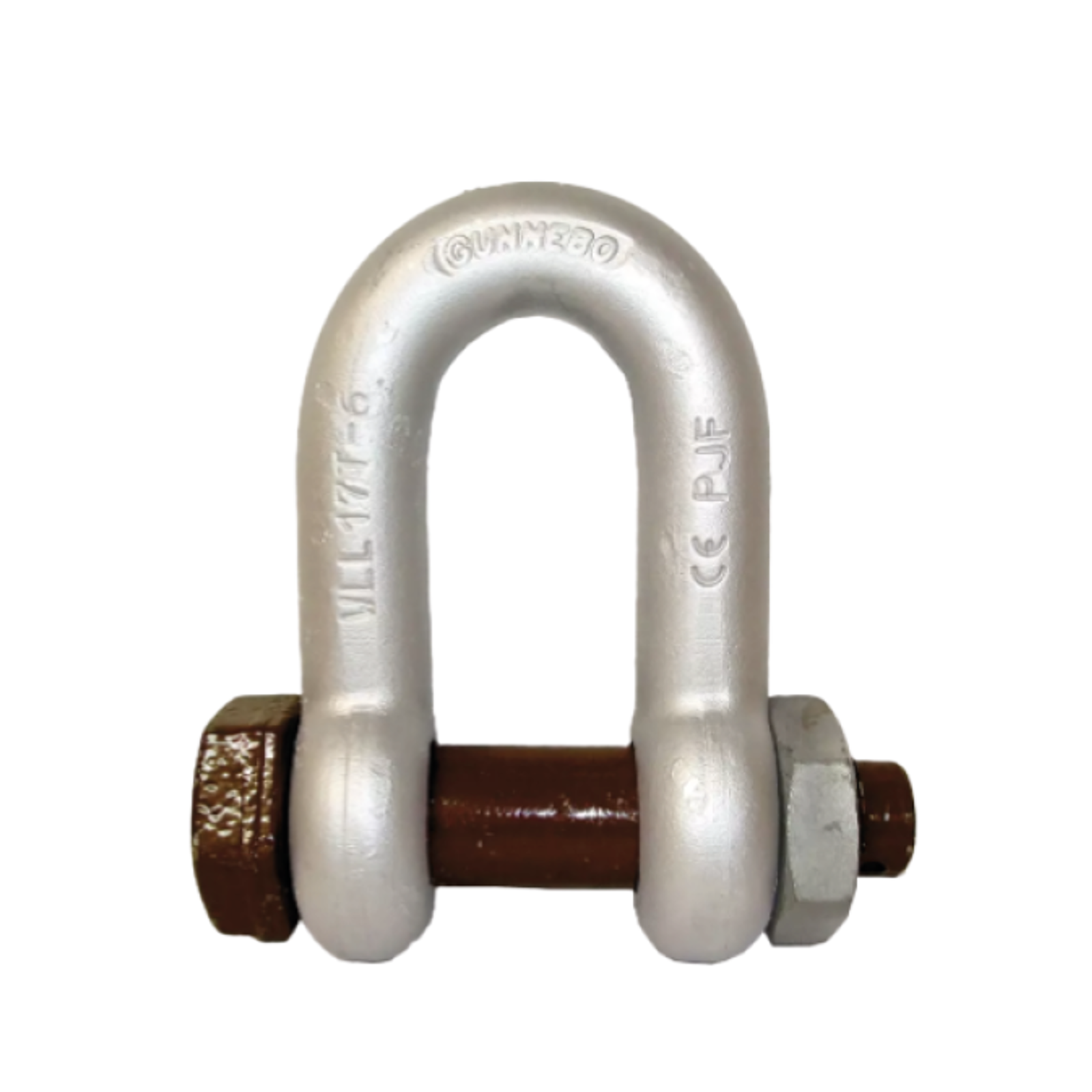

Gunnebo Schackles - Dee Shackle No 835
Shackles Dee Shackle No. 835STANDARD:
MATERIAL:
FINISH:
SAFETY FACTOR:
DOCUMENTATION:
TEMPERATURE:
DNV 2.7-1 Type Approved, EN 13889 and U.S. Fed. Spec. RR-C-271
High Tensile Carbon Steel, Quenched and tempered, Grade 6
All parts hot dip galvanized, pin bown painted on top of galv.
6:1
Test certificate and traceable raw material / inspection certificate according to EN 10204-3.1. DNV 2.7-1 and DNV 2.7-3 Type Approval Certification.
-20°C - 200°C
|
d Trade size |
||||||||
|
Art. no Screw pin |
WLL tonnes 6:1 |
Dim. d1 |
mm | inch | inner width a* |
Inner length c* |
Eye outer d2 |
Screw pin kg |
| A083516 | 3.25 | 19 | 16 | 5/8" | 27 | 51 | 40 | 0.60 |
| A083519 | 4.75 | 22 | 19 | 3/4" | 31 | 60 | 48 | 1.10 |
| A083522 | 6.5 | 25 | 22 | 7/8" | 37 | 71 | 52 | 1.50 |
| A083525 | 8.5 | 28 | 25 | 1" | 43 | 81 | 60 | 2.20 |
| A083528 | 9.5 | 32 | 28 | 1 1/8" | 46 | 90 | 64 | 3.10 |
| A083532 | 12.0 | 35 | 32 | 1 1/4" | 52 | 100 | 72 | 4.20 |
| A083535 | 13.5 | 38 | 35 | 1 3/8" | 57 | 111 | 76 | 5.60 |
| A083538 | 17.0 | 42 | 38 | 1 1/2" | 60 | 122 | 84 | 7.50 |
| A083545 | 25.0 | 50 | 45 | 1 3/4" | 74 | 149 | 105 | 13.00 |
* Forging tolerance: +/- 5% on inside width/length. Split pin included.
