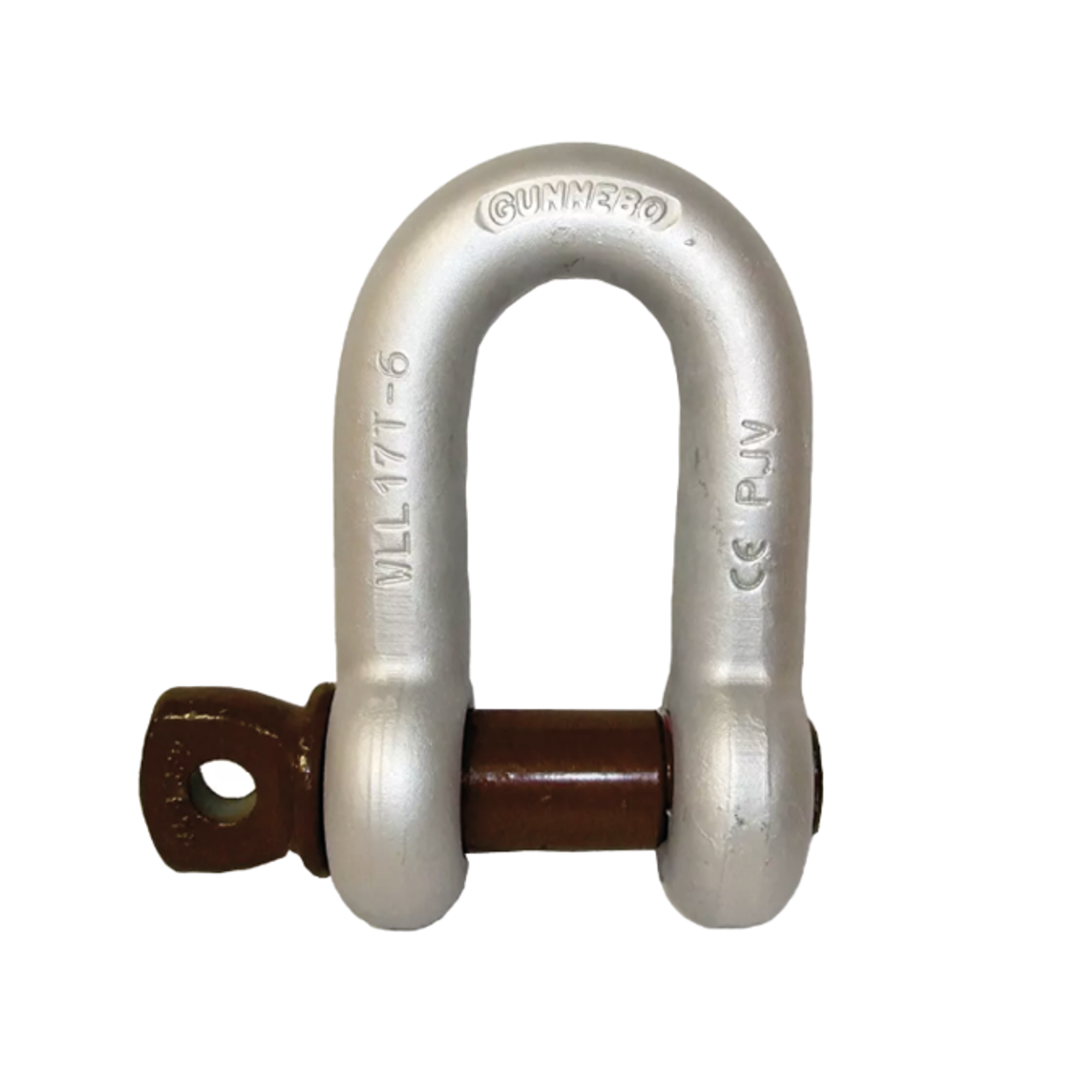

Gunnebo Schackles - Dee Shackle No 834
Shackles Dee Shackle No. 834STANDARD:
MATERIAL:
FINISH:
SAFETY FACTOR:
DOCUMENTATION:
TEMPERATURE:
EN 13889 and U.S. Fed. Spec. RR-C-271
High Tensile Carbon Steel, Quenched and tempered, Grade 6
All parts hot dip galvanized, pin bown painted on top of galv.
6:1
Test certificate and traceable raw material / inspection certificate according to EN 10204-3.1
-20°C - 200°C
|
d Trade size |
||||||||
|
Art. no Screw pin |
WLL tonnes 6:1 |
Dim. d1 |
mm | inch | inner width a* |
Inner length c* |
Eye outer d2 |
Screw pin kg |
| A083416 | 3.25 | 19 | 16 | 5/8" | 27 | 51 | 40 | 0.55 |
| A083419 | 4.75 | 22 | 19 | 3/4" | 31 | 60 | 48 | 1.00 |
| A083422 | 6.5 | 25 | 22 | 7/8" | 37 | 71 | 52 | 1.30 |
| A083425 | 8.5 | 28 | 25 | 1" | 43 | 81 | 60 | 1.90 |
| A083428 | 9.5 | 32 | 28 | 1 1/8" | 46 | 90 | 64 | 2.80 |
| A083432 | 12.0 | 35 | 32 | 1 1/4" | 52 | 100 | 72 | 3.60 |
| A083435 | 13.5 | 38 | 35 | 1 3/8" | 57 | 111 | 76 | 4.60 |
| A083438 | 17.0 | 42 | 38 | 1 1/2" | 60 | 122 | 84 | 6.50 |
| A083445 | 25.0 | 50 | 45 | 1 3/4" | 74 | 149 | 105 | 11.50 |
* Forging tolerance: +/- 5% on inside width/length.
