Gunnebo Schackles - Bow Shackle No 855

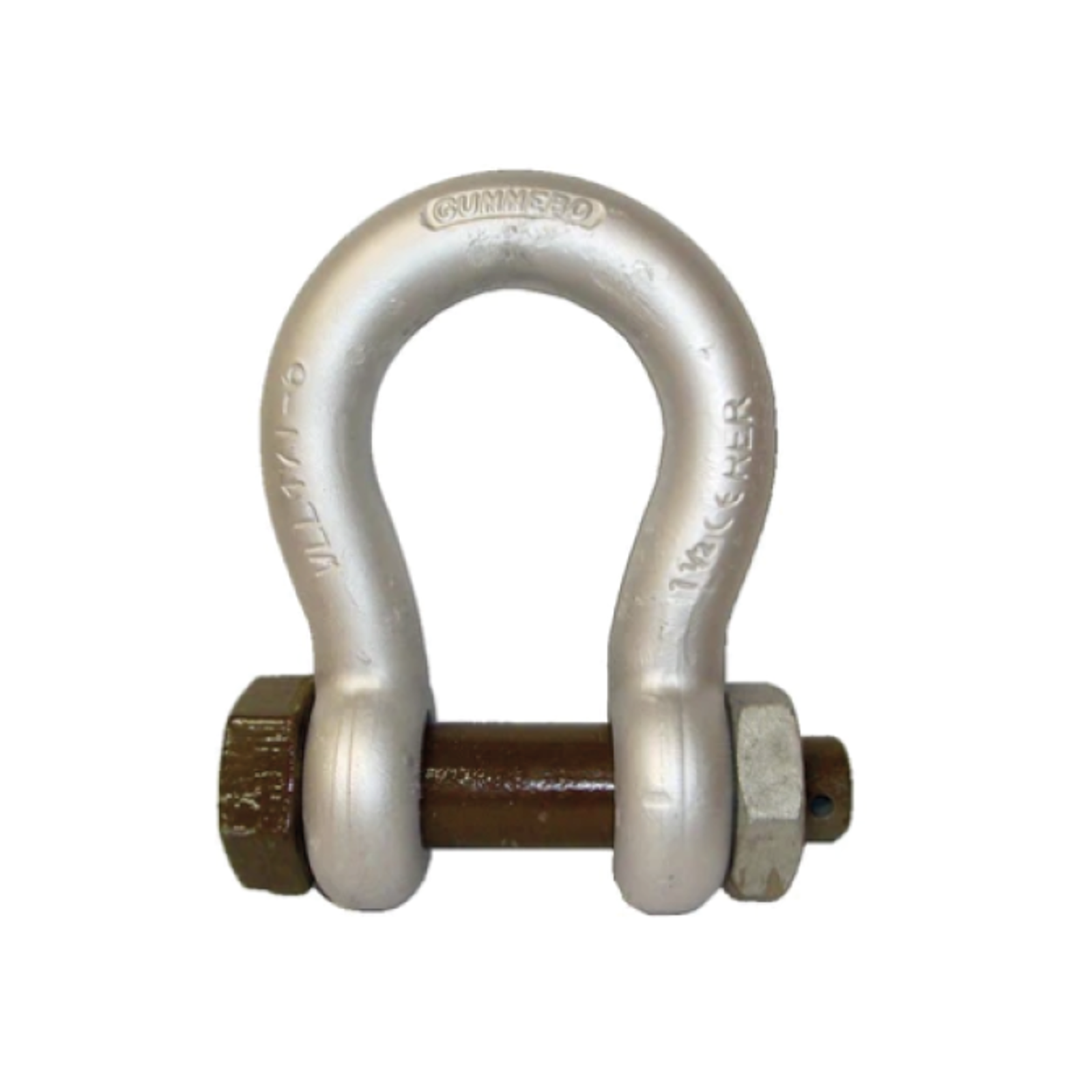

Shackles Bow Shackle No 855STANDARD:
MATERIAL:
FINISH:
SAFETY FACTOR:
DOCUMENTATION:
TEMPERATURE:
DNV 2.7-1 Type approved, EN 13889 and U.S. Fed. Spec. RR-C-271
High Tensile Carbon Steel, Quenched and tempered, Grade 6
All parts hot dip galvanized, pin bown painted on top of galv.
6:1
Test certificate and traceable raw material / inspection certificate according to EN 10204-3.1. DNV 2.7-1 and DNV 2.7-3 Type Approval.
-20°C - 200°C
|
d Trade size |
|||||||||
|
Art. no Screw pin |
WLL tonnes 6:1 |
Dim. d1 |
mm | inch | inner width a* |
Inner length c* |
Bow width e |
Eye outer d2 |
Screw pin kg |
| A085513 | 2.0 | 16 | 13 | 1/2" | 21 | 47 | 33 | 33 | 0,42 |
| A085516 | 3.25 | 19 | 16 | 5/8" | 27 | 60 | 42 | 40 | 0,70 |
| A085519 | 4.75 | 22 | 19 | 3/4" | 31 | 71 | 49 | 48 | 1,20 |
| A085522 | 6.5 | 25 | 22 | 7/8" | 37 | 84 | 60 | 52 | 1,70 |
| A085525 | 8.5 | 28 | 25 | 1" | 43 | 95 | 68 | 60 | 2,58 |
| A085528 | 9.5 | 32 | 28 | 1 1/8" | 46 | 108 | 74 | 64 | 3,40 |
| A085532 | 12.0 | 35 | 32 | 1 1/4" | 52 | 119 | 83 | 72 | 4,80 |
| A085535 | 13.5 | 38 | 35 | 1 3/8" | 57 | 132 | 89 | 76 | 7,00 |
| A085538 | 17.0 | 42 | 38 | 1 1/2" | 60 | 146 | 98 | 84 | 9,00 |
| A085545 | 25.0 | 50 | 45 | 1 3/4" | 74 | 178 | 127 | 105 | 15,00 |
| A085552 | 35.0 | 57 | 50 | 2" | 83 | 197 | 138 | 112 | 21,00 |
* Forging tolerance: +/- 5% on inside width/length. Split pin included.
