Gunnebo Schackles - Arctic Shackle No 856

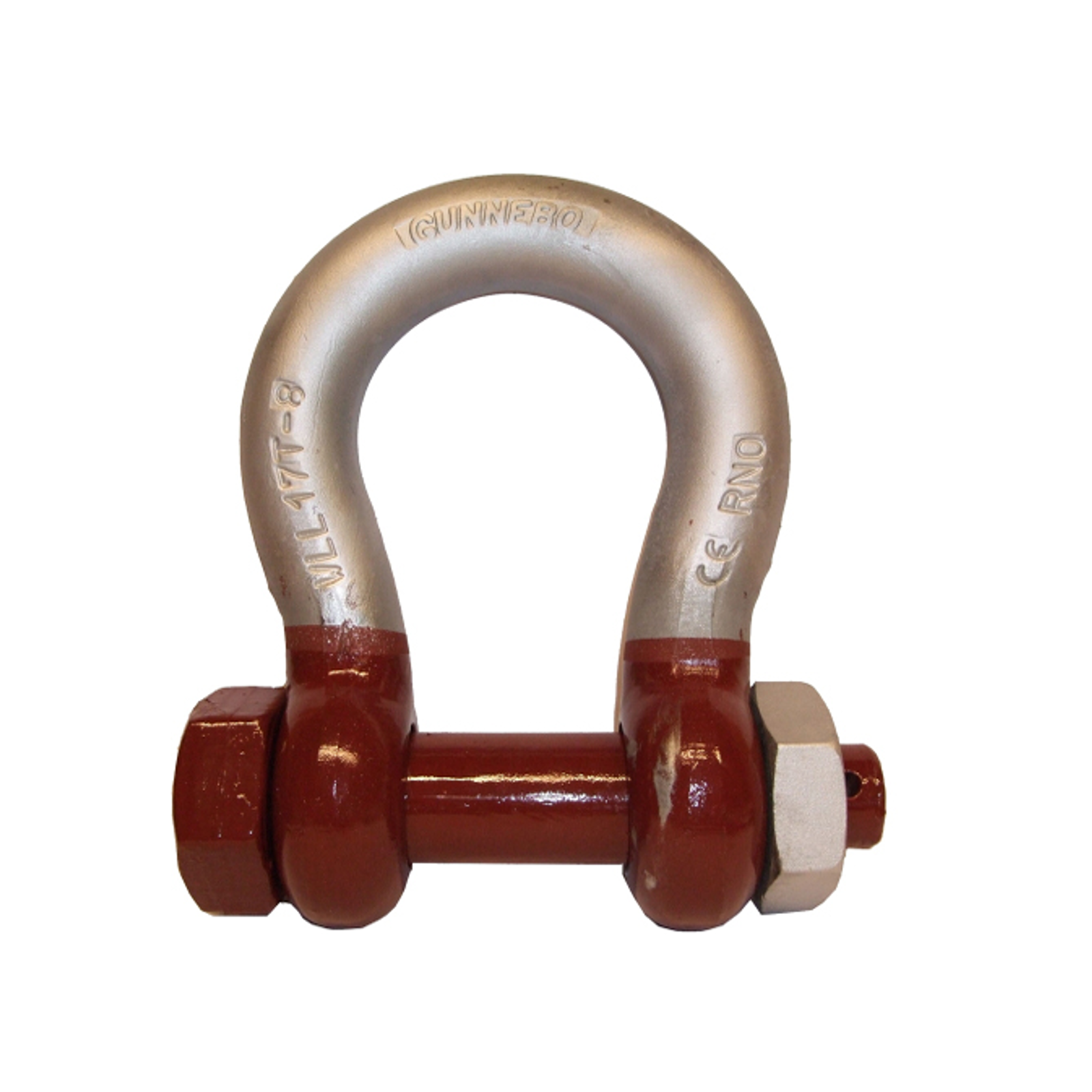

Shackles Arctic Shackle No 856Bow Shackle with safety bolt.
STANDARD:
MATERIAL:
FINISH:
SAFETY FACTOR:
DOCUMENTATION:
TEMPERATURE:
DNV 2.7-1, U.S. Fed. Spec. RR-C-271 and EN-13889
Special Alloy Steel, Quenched and Tempered, Grade 8
All parts hot dip galvanized + brown color marking.
As specified in the table below.
Test certificate and traceable raw material / inspection certificate according to EN 10204-3.1. DNV 2.7-1 and DNV 2.7-3 Type Approval.
-40°C - 200°C
Unique benefits with the Arctic Shackle
Adverse weather and rough sea conditions in combination with extremely low temperatures, as often encountered for instance in the North Sea, places tough requirements on the products used. Gunnebo Industries has a range of shackles specially designed for these conditions.
The Arctic Shackle is type approved to DNV 2.7-1 Offshore containers and meets the impact requirements of 42 J at -40°C.
The Arctic Shackle is a grade 8 shackle with all parts hot dipped galvanized, including the safety bolt, and has the characteristic brown marking.
|
d Trade size |
||||||||||
|
Art. no
|
WLL tonnes |
Dim. d1 |
mm | inch | a |
c |
d2 |
e |
Weight kg |
Safety factor |
| A085613 | 2.0 | 16 | 13 | 1/2" | 21 | 47 | 33 | 33 | 0,42 | 8,00 |
| A085616 | 3.25 | 19 | 16 | 5/8" | 27 | 60 | 40 | 42 | 0,7 | 8,00 |
| A085619 | 4.75 | 22 | 19 | 3/4" | 31 | 71 | 48 | 49 | 1,2 | 8,00 |
| A085622 | 6.5 | 25 | 22 | 7/8" | 37 | 84 | 52 | 60 | 1,7 | 7,85 |
| A085625 | 8.5 | 28 | 25 | 1" | 43 | 95 | 60 | 68 | 2,5 | 7,25 |
| A085628 | 9.5 | 32 | 28 | 1 1/8" | 46 | 108 | 64 | 74 | 3,4 | 6,94 |
| A085632 | 12.0 | 35 | 32 | 1 1/4" | 52 | 119 | 72 | 83 | 4,8 | 6,40 |
| A085635 | 13.5 | 38 | 35 | 1 3/8" | 57 | 132 | 76 | 89 | 7 | 6,10 |
| A085638 | 17.0 | 42 | 38 | 1 1/2" | 60 | 146 | 84 | 98 | 9 | 6,00 |
| A085645 | 25.0 | 50 | 45 | 1 3/4" | 74 | 178 | 105 | 127 | 15 | 6,00 |
| A085652 | 35.0 | 57 | 50 | 2" | 83 | 197 | 116 | 138 | 21 | 6,00 |
| A085664 | 55.0 | 70 | 65 | 2 1/2" | 105 | 260 | 145 | 180 | 39 | 6,00 |
Split pin included.
Contact us for more info
