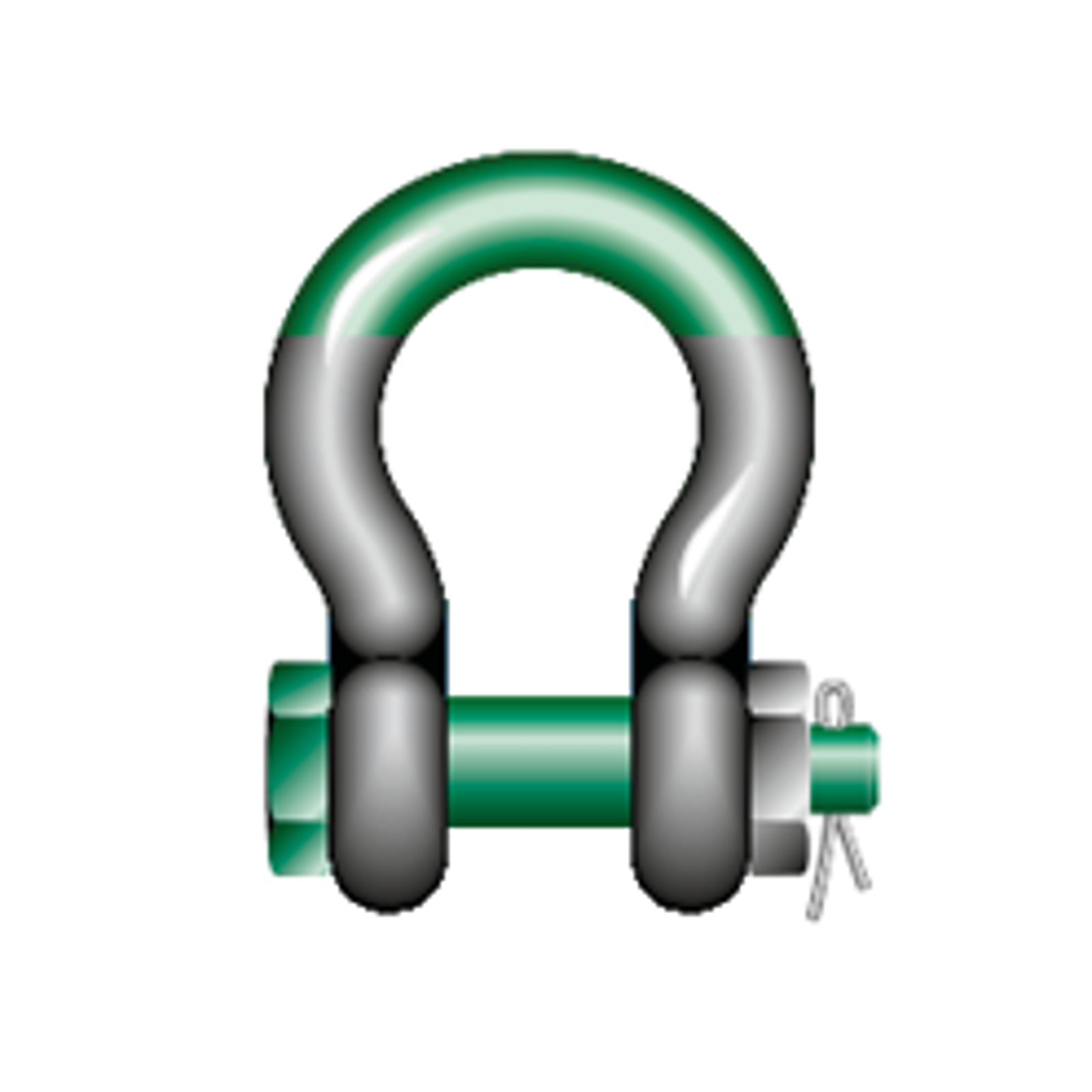

Green Pin super® bow shackle bn

Shackles - Grade 8 bow shackle with safety bolt - G-5263

MATERIAL

SAFETY FACTOR
STANDARD

FINISH

TEMPERATURE RANGE
CERTIFICATION

Bow and pin alloy steel, grade 8, quenched and tempered
MBL Equals 5 x WLL
ASME B30.26 and meets perfomance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade B
Hot dipped galvanized (175 tonne shackle is painted)
-20 degree C up to +200 degree C
2.1, 2.2, 3.1, MTCa, MTCb, LROS, CE, ABS PDA, ABD MA

Item no.	Working load limit	Dia. bow	Dia. pin	Dia. eye	Width eye	Width inside	Length inside	Width bow	Length	Length bolt	Width	Thickness nut	Weight each
	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	kg
SUGHMB13	3,3	13,5	16	34	13	22	51	32	89	82	58	13	0,40
SUGHMB16	5	16	19	40	16	27	64	43	110	98	75	17	0,73
SUGHMB19	7	19	22	46	19	31	76	51	129	114	89	19	1,19
SUGHMB22	9,5	22	25	52	22	36	83	58	144	130	102	22	1,73
SUGHMB25	12,5	25	28	59	25	43	95	68	164	150	118	25	2,56
SUGHMB28	15	28	32	66	28	47	108	75	185	166	131	27	3,6
SUGHMB32	18	32	35	72	32	51	115	83	201	178	147	30	4,95
SUGHMB35	21	35	38	80	35	57	133	92	227	197	162	33	6,62
SUGHMB38	30	38	42	88	38	60	146	99	249	217	175	34	8,11
SUGHMB45	40	45	50	103	45	74	178	126	300	260	216	40	15
SUGHMB57	55	57	57	117	57	83	197	138	341	303	252	46	23
SUGHMB70	85	70	70	143	70	105	260	180	437	363	320	56	44
SUGHMB83	120	83	83	162	83	127	329	190	535	425	356	66	72
HDSUHM0150	150	95	95	208	95	147	400	238	647	524	428	50	112
HDSUHM0150	175	105	108	238	102	169	410	275	688	561	485	60	160

In inch
