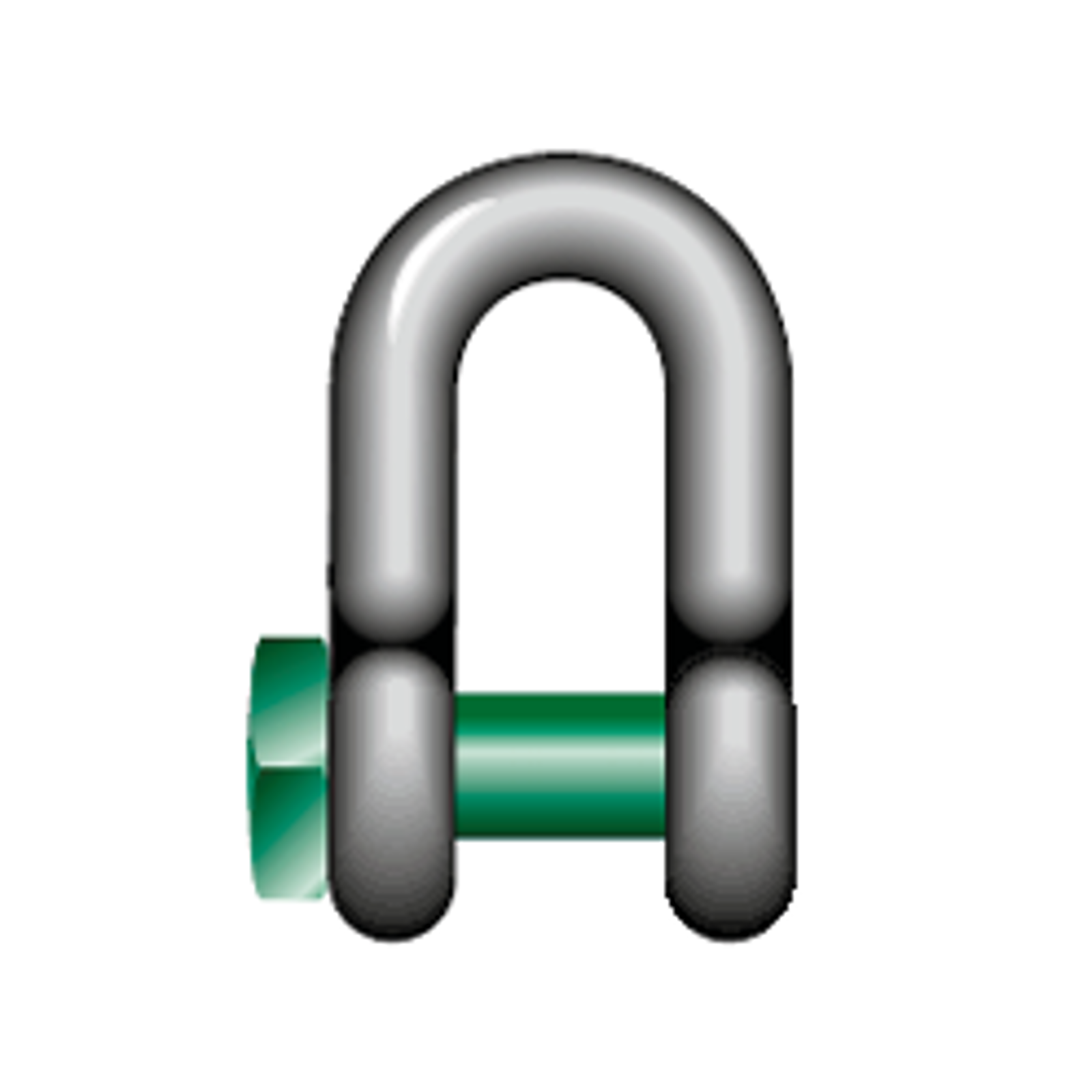

Green Pin® Fishing shackle SQ
Shackles Dee shackle with square headed screw pin - G-4154MATERIAL
SAFETY FACTOR
STANDARD
FINISH
CERTIFICATION
Bow and pin high tensile steel, grade 6, quenched and tempered
MBL Equals 6 x WLL
EN 13889, ASME B30.26 and meets perfomance requirements of US Fed. Spec. PR-C-271 TYPE IVA
Hot dipped galvanized
2.1, 2.2, 3.1, MTCa, CE
|
Item no. |
Working load limit |
Dia. bow |
Dia. pin |
Dia. eye |
Width eye |
Width inside |
Length inside |
Length |
Length bolt |
Width bolt head |
Weight each |
|
|
t |
a mm |
b mm |
c mm |
d mm |
e mm |
f mm |
g mm |
h mm |
i mm |
kg |
|
GPGDvk13 |
2 |
13,5 |
16 |
34 |
13 |
22 |
43 |
81 |
57,5 |
22 |
0,32 |
|
GPGDvk16 |
3,25 |
16 |
19 |
40 |
16 |
27 |
51 |
97 |
71 |
27 |
0,58 |
|
GPGDvk19 |
4,75 |
19 |
22 |
46 |
19 |
31 |
59 |
112 |
82 |
32 |
0,92 |
|
GPGDvk22 |
6,5 |
22 |
25 |
52 |
22 |
36 |
73 |
134 |
93 |
32 |
1,33 |
|
GPGDvk25 |
8,5 |
25 |
28 |
59 |
25 |
43 |
85 |
154 |
108 |
36 |
2,03 |
|
GPGDvk28 |
9,5 |
28 |
32 |
66 |
28 |
47 |
90 |
167 |
120 |
41 |
2,88 |
|
GPGDvk32 |
12 |
32 |
35 |
72 |
32 |
51 |
94 |
180 |
137 |
50 |
3,96 |
|
GPGDvk35 |
13,5 |
35 |
38 |
80 |
35 |
57 |
115 |
209 |
149 |
50 |
5,24 |
|
GPGDvk38 |
17 |
38 |
42 |
88 |
38 |
60 |
127 |
230 |
164 |
60 |
6,8 |
|
GPGDvk45 |
25 |
45 |
50 |
103 |
45 |
74 |
149 |
271 |
192 |
60 |
11,22 |
