Green Pin® Fishing bow shackle SQ

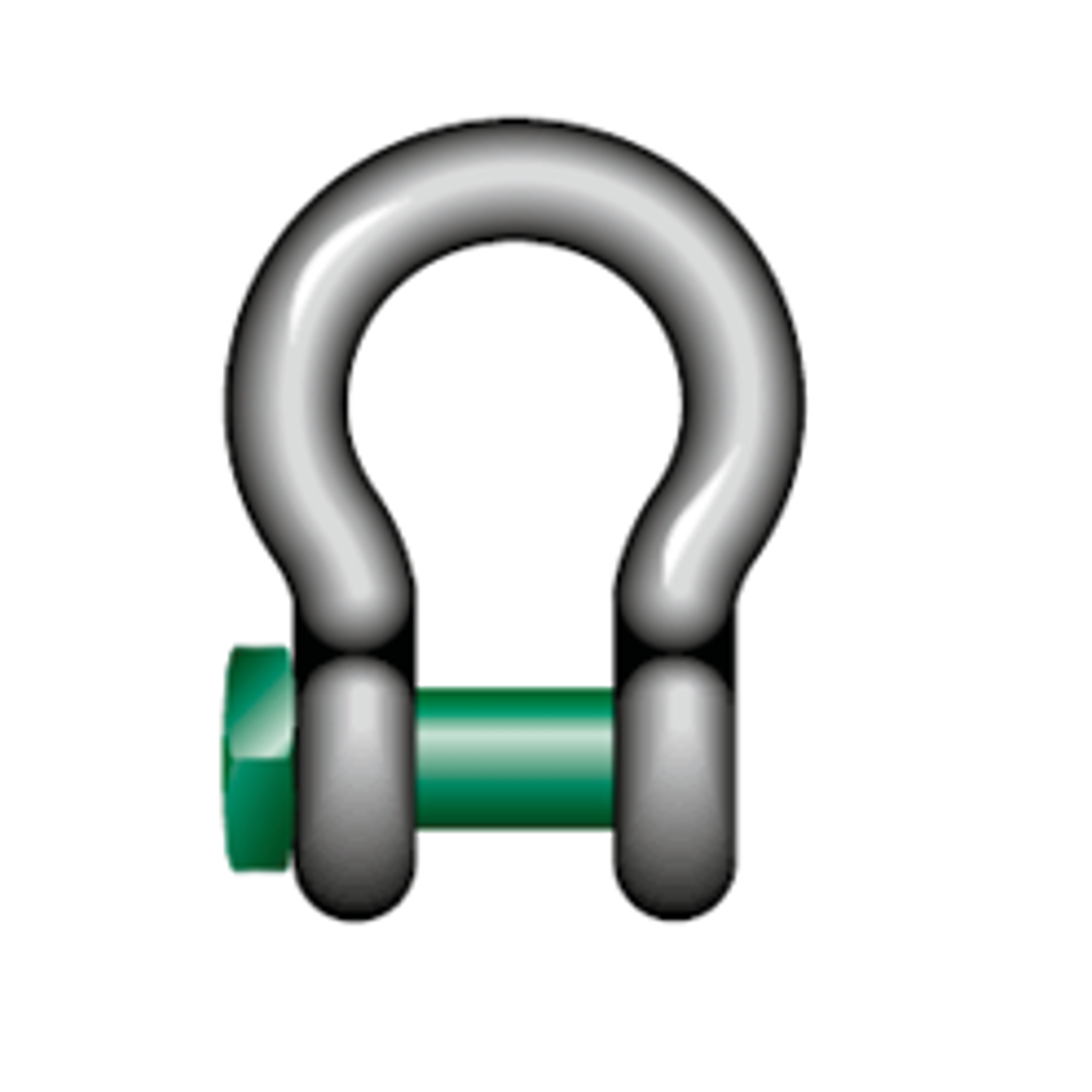

Shackles Bow shackle with square headed screw pin - G-4164

MATERIAL

SAFETY FACTOR
STANDARD

FINISH
CERTIFICATION

Bow and pin high tensile steel, grade 6, quenched and tempered
MBL Equals 6 x WLL
EN 13889, ASME B30.26 and meets perfomance requirements of US Fed. Spec.
Hot dipped galvanized
2.1, 2.2, 3.1, MTCa, CE

Item no.	Working load limit	Dia. bow	Dia. pin	Dia. eye	Width eye	Width inside	Length inside	Width bow	Length	Length bolt	Width	Width bolt head	Weight each
	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	kg
GPGHvk13	2	13,5	16	34	13	22	51	32	89	57,5	58	22	0,34
GPGHvk16	3,25	16	19	40	16	27	64	43	110	71	75	27	0,63
GPGHvk19	4,75	19	22	46	19	31	76	51	129	82	89	32	1
GPGHvk22	6,5	22	25	52	22	36	83	58	144	93	102	32	1,44
GPGHvk25	8,5	25	28	59	25	43	95	68	164	108	118	36	2,21
GPGHvk28	9,5	28	32	66	28	47	108	75	185	120	131	41	3,18
GPGHvk32	12	32	35	72	32	51	115	83	201	137	147	50	4,32
GPGHvk35	13,5	35	38	80	35	57	133	92	227	149	162	50	5,67
GPGHvk38	17	38	42	88	38	60	146	99	249	164	175	50	7,36
GPGHvk45	25	45	50	103	45	74	178	126	300	192	216	60	12,38

In inch

Contact us for more info
