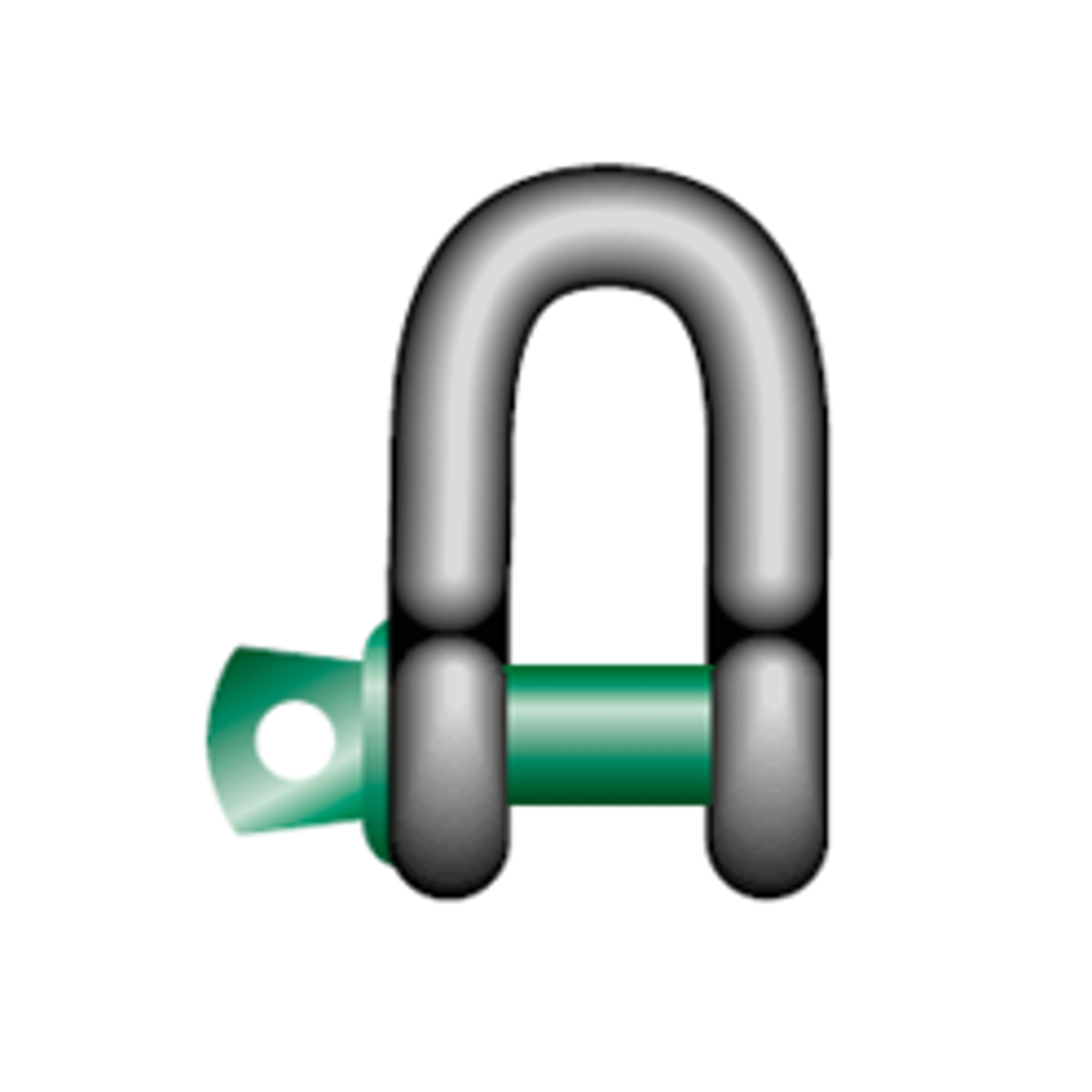

Green Pin® Dee shackle SC

Shackles Standard dee shackle with screw collar pin - G-4151

MATERIAL

SAFETY FACTOR
STANDARD

FINISH
TEMPERATURE RANGE
CERTIFICATION

Bow and pin high tensile steel, grade 6, quenched and tempered
MBL Equals 6 x WLL
EN 13889 and meets perfomance requirements of US Fed. Spec. PR-C-271 Type IVB
Hot dipped galvanized
-40 degree C up to +200 degree C
2.1, 2.2, 3.1, MTCa, DNV GL 0378, CE, ABS PDA, ABD MA

Item no.	Working load limit	Dia. bow	Dia. pin	Dia. eye	Width eye	Width inside	Length inside	Length	Length bolt	Weight each
	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	kg
GDGDBB05	0,33	5	6	12	5	9,5	19	33	29,5	0,02
GDGDBB06	0,5	7	8	16,5	7	12	22	41,5	38	0,05
GDGDBB08	0,75	9	10	20	9	13,5	26	50	46,5	0,09
GDGDBB10	1	10	11	22,5	10	17	32	59	54	0,14
GDGDBB11	1,5	11	13	26,5	11	19	37	68	59,5	0,19
GDGDBB13	2	13,5	16	34	13	22	43	81	73	0,32
GDGDBB16	3,25	16	19	40	16	27	51	97	89	0,54
GDGDBB19	4,75	19	22	46	19	31	59	112	103	0,87
GDGDBB22	6,5	22	25	52	22	36	73	134	119	1,34
GDGDBB25	8,5	25	28	59	25	43	85	154	137	2,08
GDGDBB28	9,5	28	32	66	28	47	90	167	153	2,77
GDGDBB32	12	32	35	72	32	51	94	180	170	3,72
GDGDBB35	13,5	35	38	80	35	57	115	209	186	5,14
GDGDBB38	17	38	42	88	38	60	127	230	203	6,85
GDGDBB45	25	45	50	103	45	74	149	271	243	11,45
GDGDBB50	35	50	57	111	50	83	171	305	272	16,86
GDGDBB57	42,5	57	65	130	57	95	190	345	310	24,61
GDGDBB65	55	65	70	145	65	105	203	376	344	32,65
