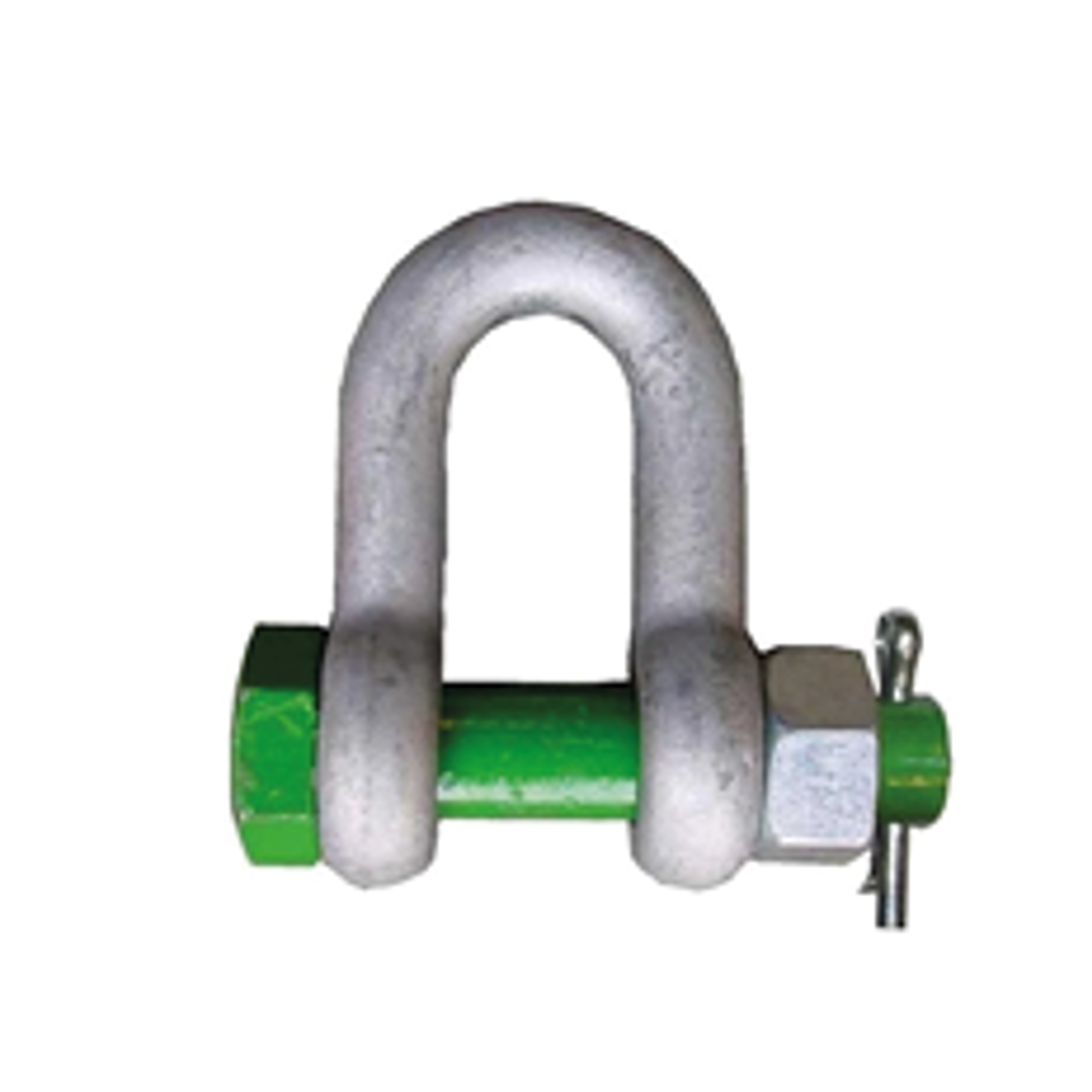

Green Pin® Dee shackle BN

Shackles Standard dee shackle with safety bolt - G-4153

MATERIAL

SAFETY FACTOR
STANDARD

FINISH
TEMPERATURE RANGE
CERTIFICATION

Bow and pin high tensile steel, grade 6, quenched and tempered
MBL Equals 6 x WLL
EN 13889, ASME B30.26 and meets perfomance requirements of US Fed. Spec.
Hot dipped galvanized
-40 degree C up to +200 degree C
2.1, 2.2, 3.1, MTC, DNV GL 2.7-1b, DNV GL 0378, CE, ABS PDA, ABD MA

Item no.	Working load limit	Dia. bow	Dia. pin	Dia. eye	Width eye	Width inside	Length inside	Length	Length bolt	Thickness nut	Weight each
	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	I mm	kg
GPGDmB13	2	13,5	16	34	13	22	43	81	82	13	0,39
GPGDmB16	3,25	16	19	40	16	27	51	97	98	17	0,67
GPGDmB19	4,75	19	22	46	19	31	59	112	114	19	1,08
GPGDmB22	6,5	22	25	52	22	36	73	134	130	22	1,66
GPGDmB25	8,5	25	28	59	25	43	85	154	150	25	2,46
GPGDmB28	9,5	28	32	66	28	47	90	167	166	27	3,4
GPGDmB32	12	32	35	72	32	51	94	180	178	30	4,51
GPGDmB35	13,5	35	38	80	35	57	115	209	197	33	6,1
GPGDmB38	17	38	42	88	38	60	127	230	202	19	7,63
GPGDmB45	25	45	50	103	45	74	149	271	249	23	12,88
GPGDmB50	35	50	57	111	50	83	171	305	269	26	17,35
GPGDmB52	42,5	57	65	130	57	95	190	345	301	29	25,94
GPGDmB65	55	65	70	145	65	105	203	376	330	32	35,33
GPGDmB75	85	75	83	162	73	127	229	427	380	39	52,97
