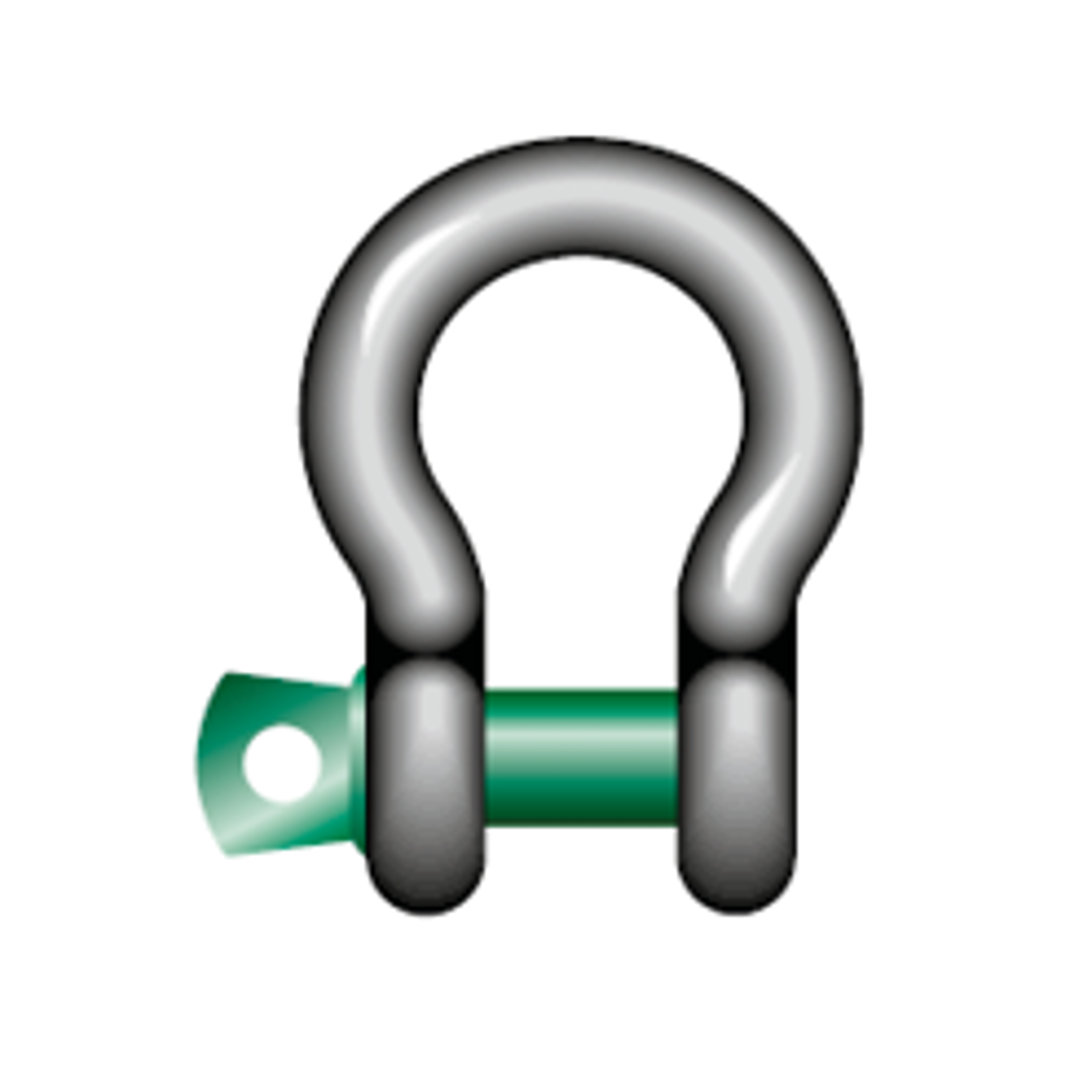

Green Pin® Bow shackle SC

Shackles - Standard shackle with screw collar pin - G-4161

MATERIAL

SAFETY FACTOR
STANDARD

FINISH
TEMPERATURE RANGE
CERTIFICATION

Bow and pin high tensile steel, grade 6, quenched and tempered
MBL Equals 6 x WLL
EN 13889 and meets perfomance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, grade A, from 2 t and upward these shackles comply with ASME B30.26
Hot dipped galvanized
-40 degree C up to +200 degree C
2.1, 2.2, 3.1, MTCa, DNV GL 0378, CE, ABS PDA, ABD MA

Item no.	Working load limit	Dia. bow	Dia. pin	Dia. eye	Width eye	Width inside	Length inside	Width bow	Length	Length bolt	Width	Weight each
	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	kg
GPGHBB05	0,33	5	6	12	5	9,5	22	16	36	29,5	26	0,02
GPGHBB06	0,5	7	8	16,5	7	12	29	20	48,5	38	34	0,05
GPGHBB08	0,75	9	10	20	9	13,5	32	22	56	46,5	40	0,1
GPGHBB10	1	10	11	22,5	10	17	36,5	26	63,5	54	46	0,14
GPGHBB11	1,5	11	13	26,5	11	19	43	29	74	59,5	51	0,19
GPGHBB13	2	13,5	16	34	13	22	51	32	89	73	58	0,36
GPGHBB16	3,25	16	19	40	16	27	64	43	110	89	75	0,63
GPGHBB19	4,75	19	22	46	19	31	76	51	129	103	89	1,01
GPGHBB22	6,5	22	25	52	22	36	83	58	144	119	102	1,5
GPGHBB25	8,5	25	28	59	25	43	95	68	164	137	118	2,21
GPGHBB28	9,5	28	32	66	28	47	108	75	185	153	131	3,16
GPGHBB32	12	32	35	72	32	51	115	83	201	170	147	4,31
GPGHBB35	13,5	35	38	80	35	57	133	92	227	186	162	5,55
GPGHBB38	17	38	42	88	38	60	146	99	249	203	175	7,43
GPGHBB45	25	45	50	103	45	74	178	126	300	243	216	12,84
GPGHBB50	35	50	57	111	50	83	197	138	331	272	238	18,15
GPGHBB57	42,5	57	65	130	57	95	222	160	377	310	274	26,29
GPGHBB65	55	65	70	145	65	105	260	180	433	344	310	37,6

In inch

Contact us for more info
