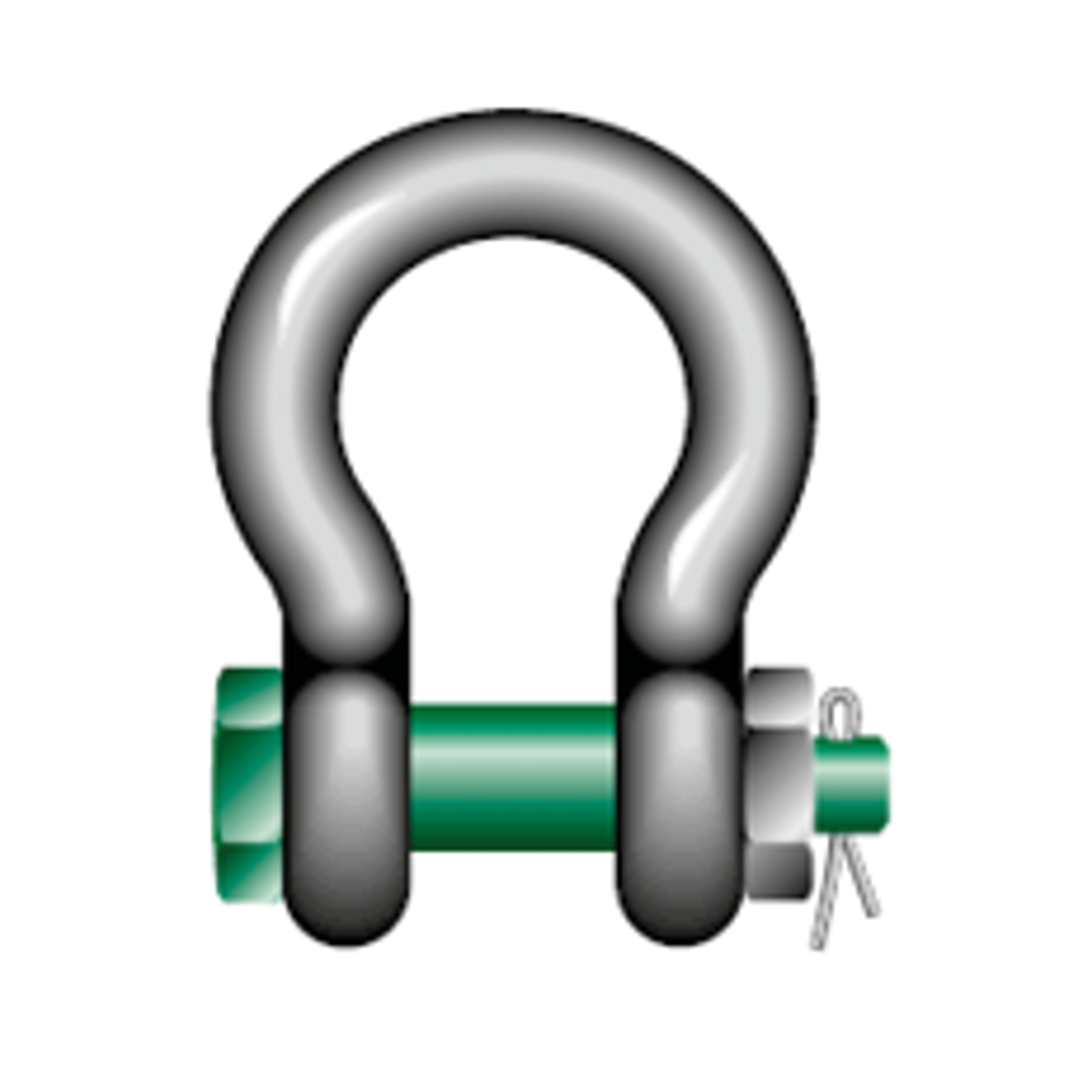

Green Pin® Bow shackle BN

Shackles Standard Bow shackle with safety bolt - G-4163

MATERIAL

SAFETY FAKTOR
STANDARD

FINISH
TEMPERATURE RANGE
CERTIFICATION

Bow and pin high tensile steel, grade 6, quenched and tempered
MBL Equals 6 x WLL
EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA
Hot dipped galvanized
-40 degree C up to +200 degree C
2.1, 2.2, 3.1, MTC, DNV GL 2.7-1a, DNV GL 2.7-1b, DNV GL 0378, CE, ABS PDA, ABS MA

Item no.	Working load limit	Dia. bow	Dia. pin	Dia. eye	Width eye	Width inside	Length inside	Width bow	Length	Length bolt	Width	Thickness nut	Weight each
	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	I mm	j mm	k mm	kg
GPGHmB06	0,5	7	8	16,5	7	12	29	20	48,5	42	34	4	0,06
GPGHmB08	0,75	9	10	20	9	13,5	32	22	56	50	40	5	0,11
GPGHmB10	1	10	11	22,5	10	17	36,5	26	63,5	60	46	8	0,16
GPGHmB11	1,5	11	13	26,5	11	19	43	29	74	67	51	11	0,22
GPGHmB13	2	13,5	16	34	13	22	51	32	89	82	58	13	0,42
GPGHmB16	3,25	16	19	40	16	27	64	43	110	98	75	17	0,74
GPGHmB19	4,75	19	22	46	19	31	76	51	129	114	89	19	1,18
GPGHmB22	6,5	22	25	52	22	36	83	58	144	130	102	22	1,77
GPGHmB25	8,5	25	28	59	25	43	95	68	164	150	118	25	2,58
GPGHmB28	9,5	28	32	66	28	47	108	75	185	166	131	27	3,66
GPGHmB32	12	32	35	72	32	51	115	83	201	178	147	30	4,91
GPGHmB35	13,5	35	38	80	35	57	133	92	227	197	162	33	6,54
GPGHmB38	17	38	42	88	38	60	146	99	249	202	175	19	8,19
GPGHmB45	25	45	50	103	45	74	178	126	300	249	216	23	14,22
GPGHmB50	35	50	57	111	50	83	197	138	331	269	238	26	19,53
GPGHmB57	42,5	57	65	130	57	95	222	160	377	301	274	29	28,33
GPGHmB65	55	65	70	145	65	105	260	180	433	330	310	32	39,59
GPGHmB75	85	75	83	162	73	127	329	190	527	380	340	39	62
