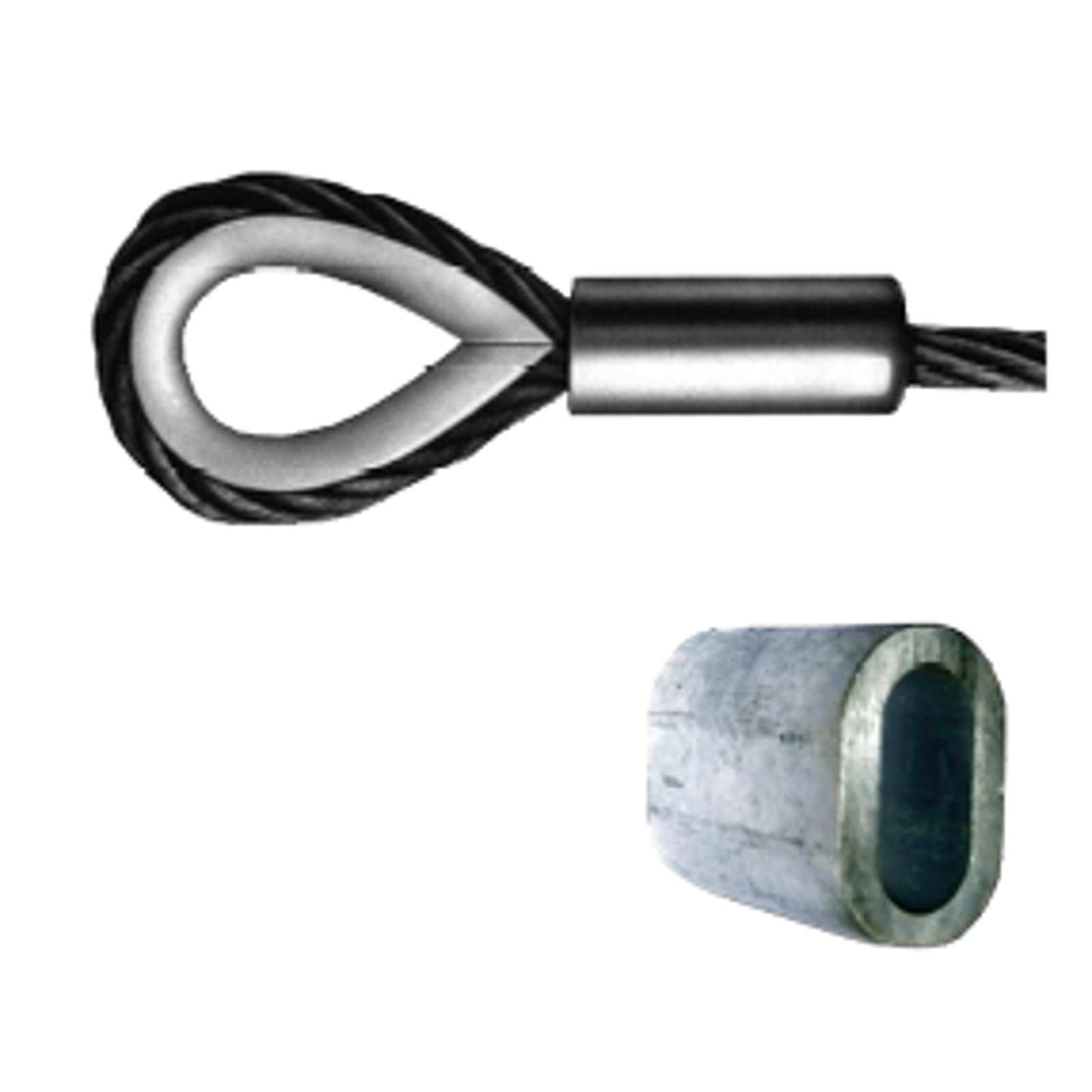

Talurits - Wire ferrules - Aluminium - Type Z (as T-type) Din 9093
Other Hardwares
|
Item no. |
Size mm. |
Wire with fibre core mm. |
Wire with steel core mm. |
Weight kg/100 |
Qty/Box |
||
|
T-015AZ T-02AZ |
1,5 2,0 |
1,0 1,6 |
1,5 2,0 |
0,9 1,2 |
1,1 1,6 |
0,103 0,021 |
1000 1000 |
|
T-025AZ |
2,5 |
2,1 |
2,6 |
1,7 |
2,1 |
0,050 |
1000 |
|
T-03AZ T-035AZ |
3,0 3,5 |
2,7 3,2 |
3,1 3,6 |
2,2 2,7 |
2,6 3,1 |
0,084 0,132 |
500 500 |
|
T-04AZ |
4,0 |
3,7 |
4,1 |
3,2 |
3,6 |
0,181 |
500 |
|
T-045AZ T-05AZ |
4,5 5,0 |
4,2 4,7 |
4,6 5,1 |
3,7 4,3 |
4,2 4,6 |
0,215 0,353 |
500 100 |
|
T-06AZ |
6,0 |
5,2 |
6,1 |
4,7 |
5,5 |
0,590 |
100 |
|
T-065AZ T-07AZ |
6,5 7,0 |
6,2 6,7 |
6,6 7,2 |
5,6 6,1 |
6,0 6,5 |
0,750 0,950 |
100 100 |
|
T-08AZ |
8,0 |
7,3 |
8,2 |
6,6 |
7,2 |
1,300 |
100 |
|
T-09AZ T-10AZ |
9,0 10,0 |
8,3 9,3 |
9,2 10,2 |
7,3 8,1 |
8,0 9,0 |
2,030 2,640 |
100 100 |
|
T-11AZ |
11,0 |
10,3 |
11,2 |
9,1 |
10,0 |
3,580 |
100 |
|
T-12AZ T-13AZ |
12,0 13,0 |
11,3 12,3 |
12,2 13,2 |
10,1 11,1 |
11,0 12,0 |
4,700 5,970 |
100 100 |
|
T-14AZ |
14,0 |
13,3 |
14,2 |
12,1 |
13,0 |
7,500 |
100 |
|
T-16AZ T-18AZ |
16,0 18,0 |
14,3 16,3 |
16,2 18,2 |
13,1 15,1 |
15,0 17,0 |
11,250 16,400 |
100 100 |
|
T-20AZ |
20,0 |
18,3 |
20,2 |
17,1 |
19,0 |
21,700 |
100 |
|
T-22AZ T-24AZ |
22,0 24,0 |
20,3 22,4 |
22,3 24,3 |
19,1 21,1 |
21,0 23,0 |
29,400 38,500 |
100 50 |
|
T-26AZ |
26,0 |
24,4 |
26,3 |
23,1 |
25,0 |
47,600 |
50 |
|
T-28AZ T-30AZ |
28,0 30,0 |
26,4 28,4 |
28,3 30,3 |
25,1 27,1 |
27,0 29,0 |
60,000 73,400 |
25 25 |
|
T-32AZ |
32,0 |
30,4 |
32,3 |
29,1 |
31,0 |
89,400 |
10 |
Please note:
Above measurements are only meant as guides - combinations between brand of wire and power presses might end up differently.
