Gunnebo coupling link G HDG
Connectors - Grade 80Produced by: Gunnebo
MATERIALS
TEMPERATURE
SAFETY FACTOR
STANDARDS
High tensile steel, Queenched and tempered, Grade 8/80
-40°C to +200°C
4:1
EN 1677-1:2008
ISO 1461:2009
Applicable parts to NS9415:2009
Hot dip galvanized coating for an increased service lifetime, making the products well suited for use in maritime environments.
|

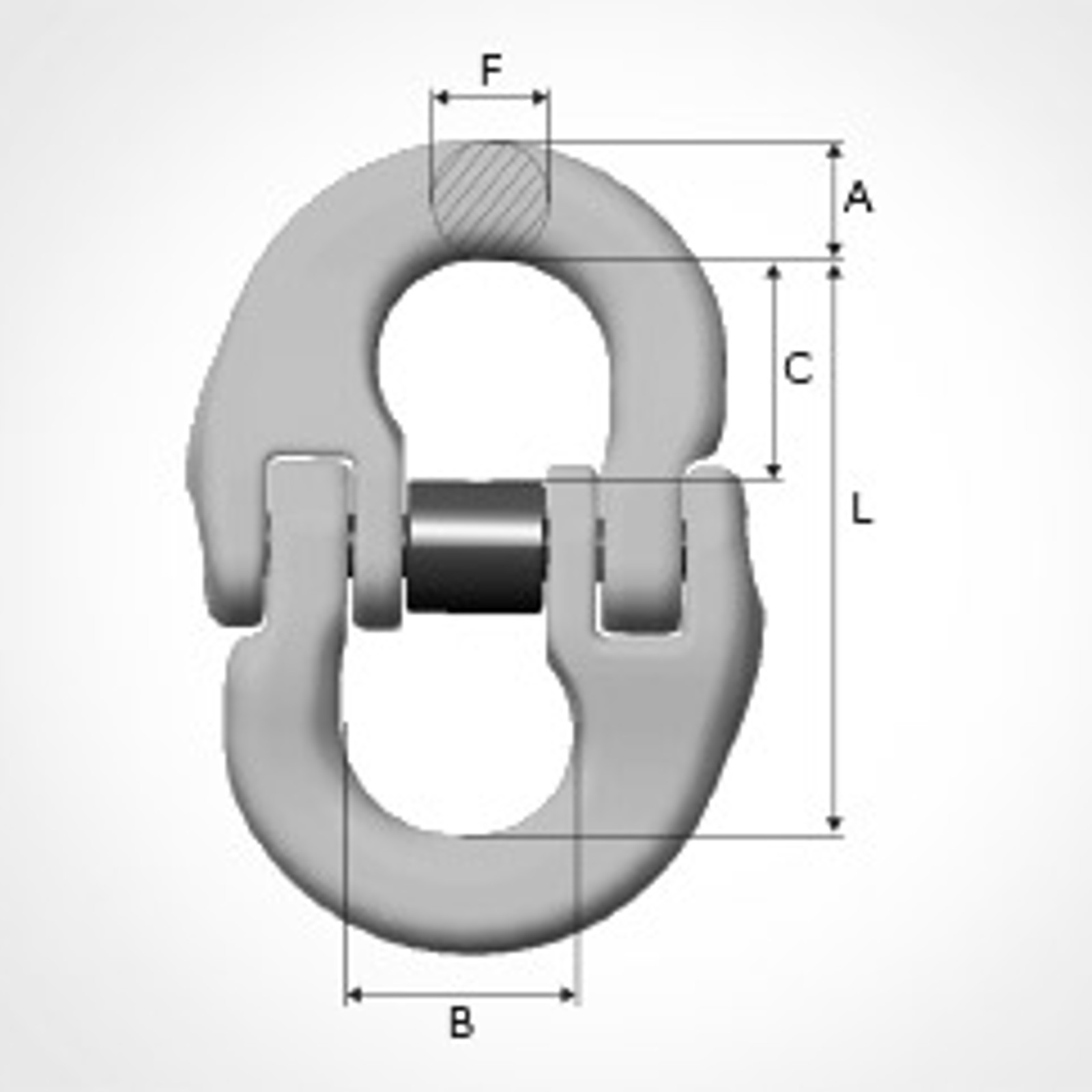

Item no. |
WLL tonnes |
L |
B |
F |
A |
C |
Weight kg |
|
G-6-8 HDG |
1,12 |
45 |
15 |
7 |
8 |
17 |
0,09 |
|
G-8-8 HDG |
2,0 |
56 |
18 |
9 |
11 |
22 |
0,17 |
|
G-10-8 HDG |
3,2 |
68 |
25 |
11 |
13 |
26 |
0,336 |
|
G-13-8 HDG |
5,4 |
89 |
30 |
15 |
16 |
33 |
0,759 |
