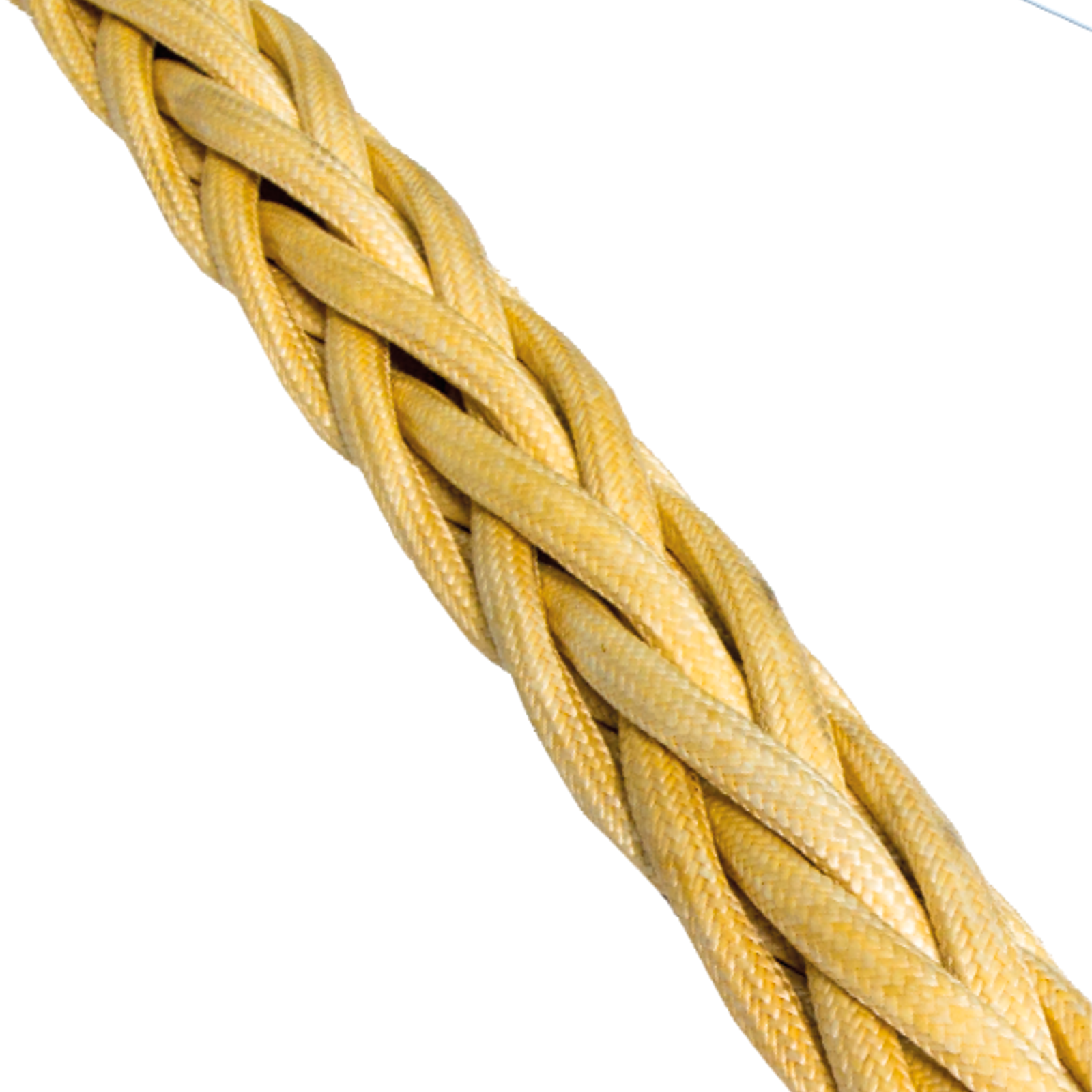

Image of Acera Barentz, 12-cover Strand HMPE Rope

Acera Barentz, 12-cover Strand HMPE Rope

Acera Products Acera™ Barentz is a unique 12-strand rope, with a core of Acera™ yarns with less twist for maximum strength. Each strand is protected by a tight 24 braided cover, to ensure each individual strand has maximum protection from wear and abrasion in rugged conditions. This construction results in an evenly round shaped rope.

CONSTRUCTION
FIBER
SPECIFIC GRAVITY
OIL CONTENT IN FIBER
FIBER TOXICITY
COATING TOXICITY

WEATHERING (ISO 12224)
UV RESISTANCE
ABRASION RESISTANCE
ACID RESISTANCE
ALKALI RESISTANCE
OIL RESISTANCE
MOST CHEMICALS RESISTANCE
COLD & FROST RESISTANCE
WATER RESISTANCE
HEAT RESISTANCE
BENDING FATIGUE
TENSION FATIGUE
ELONGATION
COLOURS, POLYESTER COVER
COLOURS, ACERA COVER



Other colours and colour combinations available on request.

12-strand plaited, 24 braided cover
Acera HMPE - optional PES cover
0,973 (floating)
>0,1%
Biologically inert, IARC classified 3
Water based, solvent free,
REACH approved
Excellent
Excellent
Excellent
Excellent
Excellent
Excellent
Excellent
Excellent
Excellent (0% absorption)
Low (145-150 melting)
Excellent
Excellent
Low (2-3% at break)
White
Yellow

ACERA

Acera™ Barentz is a unique 12-strand rope, with a core of Acera™ yarns with less twist for maximum strength. Each strand is protected by a tight 24 braided cover, to ensure each individual strand has maximum protection from wear and abrasion in rugged conditions. This construction results in an evenly round shaped rope.

This special construction provides significantly increased safety properties, as the covers act as snap-back/recoil arrestors. In combination with the low elongation on HMPE fibers, there is minimal risk of potentially damaging backlash if a mooring line break.

Acera™ Barentz is made from Acera™ genuine HMPE yarns, which are individually coated through a rotating 360° Lick-roller process. This cumbersome single yarn coating process demonstrates the uncompromising commitment to the quality standards af Acera™. Single yarn coating is proven to significantly enhance internal and external abrasion resistance and extend service life and strength.

Optional HP polyester cover available.

Acera™ Barentz with Acera™ cover will float; while the polyester cover will make it sink.

Key benefits:

  • Increased safety (snap-back arrestor).
  • High strength-to-weight.
  • Available in high diameters.
  • Available in very long lengths.
  • Excellent abrasion resistance.
  • Reduced external damage and particle ingress.
  • Easy to splice and repair.
  • Easy to inspect.
  • Extremely good on winches, bits, and capstans.
  • Prevents the cover and core from moving independently.

Acera™ Barentz has genuine safety properties and abrasion resistance, in addition to the standard Acera™ benefits: lightweight, ultrs strong and competitive pricing. The availability of polyester covers, and high diameters make the ropes attractive in several applications:

  • Mooring - Towing - Lifting - Winching
  • Tankers - cruise ships - tug boats
  • Offshore and seismic vessels, etc.

Item no.

Diameter mm.

MBL unspliced MT

MBL spliced MT

20BARENTZ

20

38,7 34,7

22BARENTZ

22

45,9 41,3

24BARENTZ

24

53 42,9

26BARENTZ

26

61,2 55,1

28BARENTZ

28

69,9 62,7

30BARENTZ

30

79 71,4

32BARENTZ

32

88,2 79,5

34BARENTZ

34

98,4 88,7

36BARENTZ

36

109,1 98,4

38BARENTZ

38

119,9 108,0

40BARENTZ

40

131 117,8

44BARENTZ

44

155,5 140,2

48BARENTZ

48

181 163,2

52BARENTZ

52

208,5 187,6

56BARENTZ

56

237,6 213,6

60BARENTZ

60

268,7 241,7

64BARENTZ

64

300,8 270,7

68BARENTZ

68

335 301,3

72BARENTZ

72

370,7 333,4
